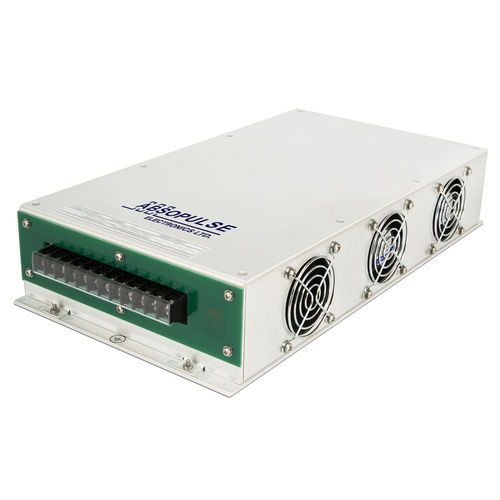

AC/DC power supply PFHI 1K-FXW

switchingbattery chargerfor industrial applications

ABSOPULSE Electronics PFHI 1K-FXW series of high input voltage, wide input range AC-DC switched-mode power supplies with active power factor correction (PFC) are designed for 1kW industrial applications. The PFHI 1K-FXW units employ active power factor correction, which limits input current harmonics to achieve a PFC rating of 0.97 at full load for the entire input range. All power supplies in the series comply with the EN61000-3-2 directive for low input harmonic distortion. Key Specifications • - 1000W industrial quality AC-DC power supply; • - High AC-input voltage: 400Vac; • - Wide AC-input voltage range: 180-480Vac operating range; • - DC-output voltage: 24Vdc/40A, 48Vdc/20A, 110Vdc/9A, 125Vdc/8A or custom; • - N+1 redundancy available as option; • - High efficiency: 80% min. at full load (output voltage dependent); • - Active power factor correction (PFC) on input; • - Power factor meets EN61000-3-2; • - EMI: EN55032 Class A with wide margins; Class B available; • - Ruggedized to withstand shock and vibration (IEC61373 Cat 1 A&B); • - Conformal coated internal boards; • - 0°C to +50°C operating temperature range; • - Forced air cooling by high quality built-in DC-fans; • - FXW chassis: 185.4 x 69.3 x 351 mm/7.3″ x 2.7″ x 13.8″ W x H x D
