AC/DC power supply PFC-419F-5K-4U19 Series

multiple-outputswitchingrack-mount

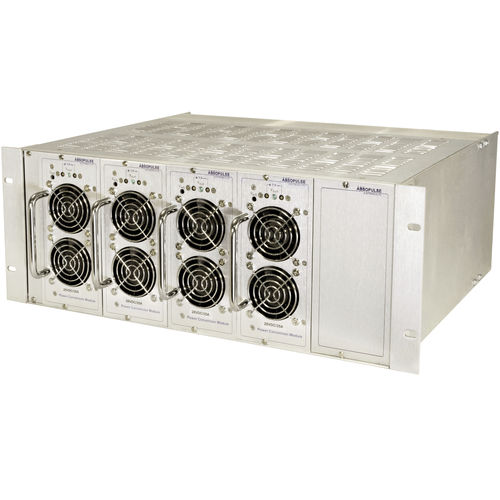

5kW, Rack-mount AC-DC power system with 1kW, PFC-input, hot-swap plug-in modules The PFC-419F-5K-4U19 Series is a 5kW, rack-mount AC-DC power system with PFC input. The system is constructed with up to five 1kW plug-in power supply modules assembled in a 4U x 19” x 15” card-frame. Each 4U x 16HP x 304 mm plug-in module has a built-in redundancy diode for parallel connection or N+1 redundant operation, including hot-insertion/hot-swap. The redundancy diode also allows for a battery to be connected to the output for back-up purposes. The fully loaded PFC-419F-5K-4U19 system delivers a maximum of 5kW or 4kW with N+1 redundancy. Each plug-in module employs a power factor corrected input and a following half-bridge stage to convert the universal ac-input voltage (95-264Vac) to 24Vdc, 48Vdc, 110Vdc or 125Vdc. Custom input/output voltages are available. The modules include a module fail alarm with optocoupler output, summarized into a single Form C alarm on the shelf motherboard. The front panel of every module includes an output ON LED indicator. Test points for monitoring output voltage and voltage adjustment potentiometers are available as options.
