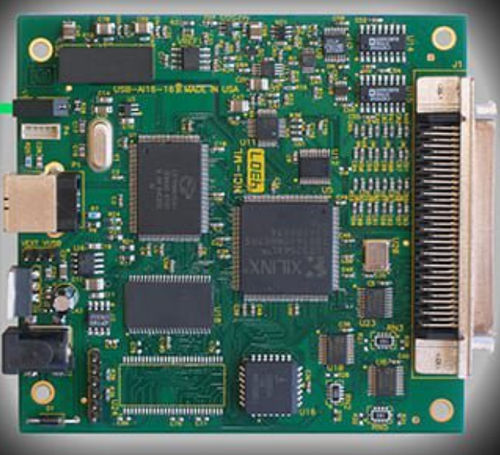

Analog I/O card USB-AIO16-16F-OEM

USB16-channel8 analog inputs

-High-speed USB 2.0 multifunction DAQ -Sustained sampling speeds up to 1MHz -16-bit or 12-bit resolution A/D converter -Flexible, software configured functionality -16 single-ended or 8 differential analog inputs -8 input ranges, 4 unipolar and 4 bipolar, channel-by-channel programmable -Autocalibration and oversampling for real-time accurate data -A/D starts via software, timer, or external trigger -Two 16-bit analog outputs; 4kHz update rate -16 high-current digital I/O lines -Alternate micro-fit embedded USB header connector -USB/104 form-factor for OEM embedded applications -Small, (4″ x 4″ x 1.25″) rugged industrial enclosure -All required power drawn from USB port, no external power adapter required -Type B USB connector features industrial strength and high-retention design -Now with Firmware 2.0 features! -Onboard Watchdog Timer, configurable power-on defaults, digital input debouncing and latching, digital output Pulse Width Modulation (PWM) and Matrix Mapping -Designed, made, supported, and manufactured in the USA FACTORY OPTIONS -Pseudo-differential analog inputs -Four 16-bit analog outputs; 4kHz update rate -External power for high current capabilities -Screw terminals for power input provide high retention connection -Industrial operating temperature (-40°C to +85°C) -OEM (board only) version for embedded applications -Single-ended current inputs (4-20mA or 10-50mA) -Voltage dividers per input -RoHS Available. Please contact us for ordering information
