Electric cable hoist E.lift® series

compactdoublelightweight

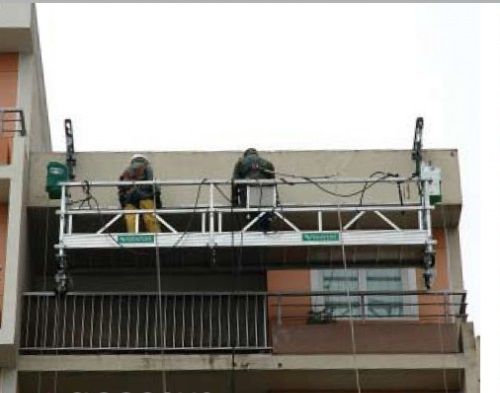

E.lift® 350 electric hoist The e.lift 350 electric hoist is specially designed and approved for lifting people. Can be incorporated to different kind of suspended platforms (like Moduleco or Modulaho) and suspended cradles, suspended work seats and other special scaffoldings. The e.lift 350 electric hoist includes all the safety devices necessary for lifting people: emergency descent, electromagnetic brake, load limit sensor and upper limit switch. His wire ropes system allows an unlimited height just changing the length of the wire ropes. The e.lift 350 is robust, reliable, easy to maintain and to transport thanks to his compact design. To guarantee the safety it has double wire ropes (suspension wire rope and secondary wire rope) and includes a Securichute or Securistop fall arrest device. Advantages: - Unlimited height work. - Chassis manufactured in aluminium and case built in polyamide. Highly resistant to impacts. - Constant force and climb speed. - Quick access to electric and mechanical components. - Lightweight and ergonomic. Technical data: - Load capacity: 350 kg - Approved for lifting people: Yes. - According to EN 1808 norm: Yes. - Motor voltage e.lift 350 M single-phase: 230 V / 50 Hz. - Motor voltage e.lift 350 T three-phase: 400 V / 50 Hz. - Climb speed: 9 m/min. - Wire rope diameter: 8,3 mm. - Brake load limit of the wire rope: 4.800 kg. - Safety coefficient of the wire rope: 12. - Weight: 37 kg. - Emergency descent speed: 4,5 m/min. - Load limit sensor: Yes. - Engine's power for e.lift 350 M single-phase: 0,75 kW. - Engine's power for e.lift 350 T three-phase: 0,74 kW.
