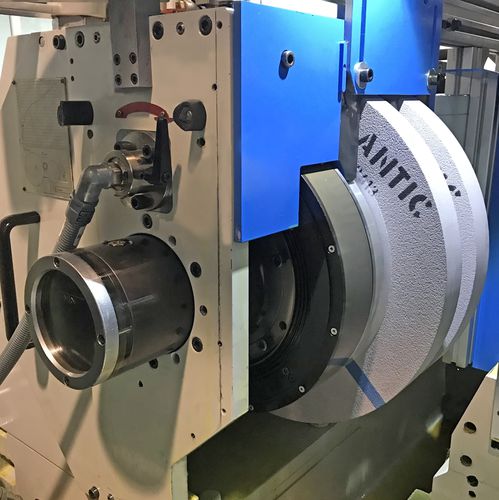

Grinding machine balancing system SBS Hydrokompenser

automatichigh-speed

The Hydrokompenser is the original automatic balance system, designed for high-speed applications. The system is now manufactured in the U.S. Individual grinding wheels or grinding wheel assemblies can be balanced fully automatically, and under operational conditions, with high reliability and ac Our new SB-5500 control is now a part of the Hydrokompenser system, allowing even greater speed, accuracy and ease of use. This is the same control system used by our SBS mechanical balancer product line, so users of both systems can now standardize on one interface, and even configure the control to operate both types of balancers from one unit. With the standard CNC interface, the system can be connected with any machine controller. The Hydrokompenser system uses machine coolant, water, or other available fluids to perform balancing. A four-chamber balance container is integrated into the wheel carrier or flange of the rotating grinding wheel to allow for injection of the correction medium. To achieve balance, a compensation counterweight is produced by addition of fluid to the chambered container that offsets the imbalance of the wheel assembly. Magnitude and location of the imbalance are determined by a special measurement technique, using the systems rpm sensor and vibration sensor as inputs. The control unit processes this information to monitor the balance condition of the machine, and to control the balancing operation. The balance correction fluid is supplied via four injection nozzles to the four respective correction chambers. The delivery of fluid required for proper balancing is controlled by solenoid valves.
