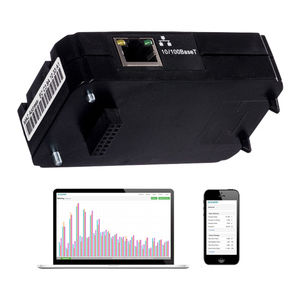

Ethernet communication module AXM-WEB2

WiFiModbus TCPBACnet

Fiber Optics Module For Acuvim II Power Meter AXM-WEB2 FOLC Communication Module AXM-WEB2 FOLC provides a Fiber Optic LC Connector, Ethernet port and WiFi channels for fast and diverse range of applications for the Acuvim II Series power meters. Supports a wide range of communication protocols such as Modbus-TCP/IP, HTTP/HTTPs Post, FTP, sFTP, BACnet IP, DNP V2, SNMP V3, IEC61850 2nd edition, SMTP and NTP time synchronization. Daisy-chain Ethernet ports (RSTP Protocol) Fiber Optics LC Connector 802.3u Fast Ethernet 100Base-FX compatible Multimode Cable diameter 62.5/125 μm and 50/125 μm Maximum segment length of 2,000m 1310nm wavelength reduces signal loss and absorption Ethernet Port and WiFi channel Up to 2,000 meter distance from your meter to hub/switch
