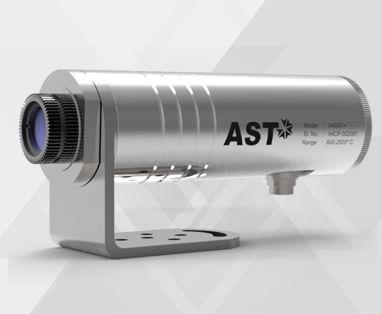

IR pyrometer A+ Series

digital°Cwith laser pointer

• A+ series pyrometers are highly accurate digital IR Focusable pyrometer to provide high performance and low maintenance of non contact temperature measurement in demanding industrial and R&D environments. • Integrated OLED Display & Parameterizing Keys. The parameters like Emissivity, Response time, Peak picker can be set via the Key pad on the back panel. • Laser targeting, Through The lens view finder and video sighting options are available. • A250+ and A450+ are single color options while A450C+ is a two color model. The pyrometers are switchable between Single and two color modes. • Analog output options 0...20mA/ 4...20mA & RS-485 Serial interface. • LED Indication : Green LED for pyrometer status indication & Red LED for Laser ON/OFF indication. • User friendly Infrsoft PC software for communication. • In A+ series, switching laser ON/OFF does not effect the measurement. Standard Scope Of Supply • Pyrometer with Focusable optics, OLED Display & Parameterizing Keys • Laser pilot light(PL)/Through the lens(TL) sighting / Video Module (user can select while ordering) • Analog output 4...20mA, 0..20mA • Digital Interface RS-485 • 5 mtr long connection cable with connector • 1.5 mtr. Communication Cable • Calibration certificate, Software & Operation manual Optional • Mechanical & Electrical Accessories • Extra Cable Lengths
