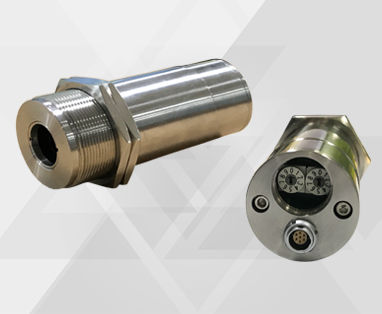

IR pyrometer T Series

thermocoupledigital°C

• T3 series are specially designed IR Pyrometers for non contact temperature measurement in two wire technology for easy electrical connections. • The Pyrometers are highly accurate and compact by nature with stainless steel housing to provide high operational safety for harsh industrial environments. • The parameters like Analog Sub Range, Response Time, Peak Picker, Valley Picker etc. can be preset ex-works or adjustable via Software Infrasoft. • Laser Light for precison targeting of the measuring object. • Digital TTL output. • Small spot sizes. • T series are specially designed OEM recommended models perfectly suited for demanding industrial environment because of the compact size, small housing dimensions and low maintenance. • TL8 model can replace the already installled contact probes with the K type or J type thermocouple output alongwith standard 0..5V, 4...20mA and 0...20mA Analog outputs especially designed for low temperature application needs, ranging from 0°C...500°C. Additionally it is also equipped with Alarm Output. • TL 390 & TL 514 are specially suitable for non contact temperature measurement of glass surfaces & quartz surfaces in demanding industrial environments. • Multidrop T Series has been designed to offer our customers a cost – effective non – contact based temperature monitoring solution, ideal for installation at multiple points in their processes. • Infralink USB Interface to access the Infrasoft Software. Standard Scope Of Supply • Pyrometer with 3 mtr. long connection cable • Analog output 2 wire....4-20 mA (isolated) • Emissivity adjustable switch • TTL output
