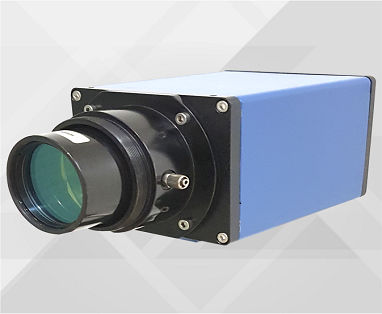

Aluminum pyrometer A5-IN

without display°Cwith laser pointer

A5-IN is a Multi-wavelength plug and play pyrometer which uses application specific data base derived from years of experience in real application. A5-IN uses special algorithms to accurately calculate both the actual temperature and emissivity of the surface. A5-IN can hold multiple data base so that single instrument can be easily switched between multiple application like Molten metal, Extruded profiles, Rolled aluminum surface, Continuous casting, Aluminum billets, Slabs etc. A5-IN offers Bluetooth communication so that it can communicate with Android smart phones or laptop for viewing the measured temperature and for adjusting the parameters / selection of data base and data logging Key Features • Simple to use - No calibration required • High accuracy - (1%) in real site conditions • Capable of measuring targets with variable emissivity • Measures through smoke, dust, water vapor etc. • Rugged design • Full range of accessories • Wide range of built-in functions • AST NET sw software for PC • AST Mobile Application software for Android via Bluetooth Standard Scope of Supply • Integrated laser pilot light • Digital Interface RS-232 • Calibration certificate, PC Software & Operation Manual Optional • Mechanical and Electrical Accessories • Analog Output : 0…20mA or 4....20mA or 0-10V or K type T/C • Extra Cable Lengths • RS422, RS485, OpenBus, USB, Bluetooth
