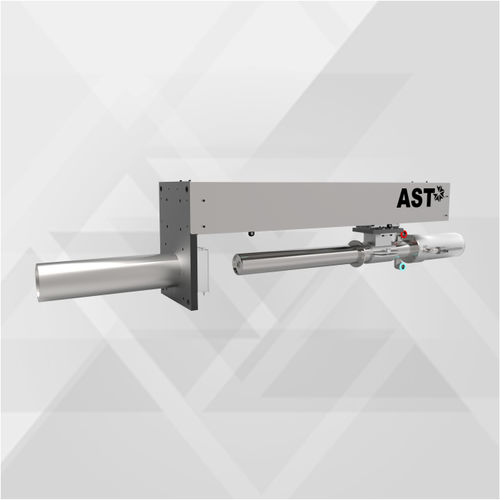

Rugged camera system FMC series

for furnacesmonitoringHD

High-Temperature Furnace monitoring fixed mount video camera system AST FMC-100/VFL, FMC-100/VFL(FF), FMC-300/PHL & FMC-300/PHL(A) provides a wide-angle view of burner flames, material alignment & other process conditions in the furnace, Incinerator, boiler, reheating furnace or another combustion chamber. The ASTFMC Series is mounted on the wall of the furnace. The system has pneumatic furnace flap shutter which is regulated by air for safety. It uses a special HD camera with high precision pinhole lens/auto iris varifocal lens which is mounted inside stainless steel housing. The housing is equipped with a vortex air & water cooling system that enables the system to work in high-temperature environment & also a continuous supply of air keeps the lens clean. The camera is inserted through a shutter which opens with the force of camera probe & shuts the furnace opening when the probe retracts. Product Features • Wide angle of view 85°. • Relay alarm outputs for DCS • Clear live video in low/high light condition. • Workin in high and harsh conditions • Two stage air filteration for clear view and smooth working of system. • Rodless cylinder reduce size and weight of system • 66mm Stroke useful in wall thickness of 400mm and800mm stroke in wall thickness of 600mm. Software Infraview • Configurable ROI’s : point, line, free shape • Histogram and isotherm visualization • Hot and cold spot detection • Color pallet scaling • Trend charts • Alarm output • Video and Image export • Server client configuration
