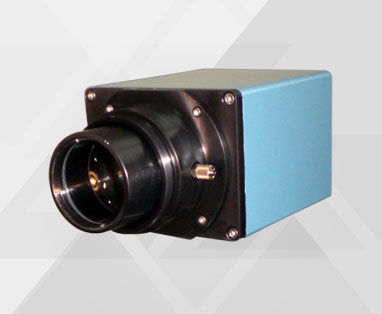

Aluminum processing pyrometer FR3000without display°Cwith laser pointer
Add to favorites
Compare this product
Characteristics
- Display
- without display
- Units of measurement
- °C
- Aim
- with laser pointer
- Communication
- RS485, 4-20 mA, PROFIBUS, RS-232
- Protection level
- rugged
- Configuration
- fixed, built-in
- Applications
- for aluminum processing
- Other characteristics
- high-precision, non-contact, scanning
- Temperature
Min.: 100 °C
(212 °F)Max.: 600 °C
(1,112 °F)- Precision
0.3 %, 0.7 %, 1 %, 2 %
- Response time
Min.: 100 ms
Max.: 10,000 ms
Description
Key Features
• Capable of measuring targets with variable emissivity
• Rugged design
• High accuracy in real world conditions
• Full range of accessories
• Wide range of built-in functions
Specifications
• Power supply: 24V (18 - 36V) DC 0.4A
• Optional outputs: 4-20 mA, 0-20 mA, 0-10 V, RS- 232, RS-422, RS485, Alarms, Profibus
• Response time: 0.1 - 10 Sec (Default value: 0.5 sec)
• Optional: Display P110 monochrome single channel
• Scanning System PS3000
• Accuracy :
Above 300°C = ± 0.3% of measured value
300-200°C = ± (0.3% +1°C)
200-150°C = ± (0.7% +1°C)
150-100°C = ± (1.0% +2°C)
