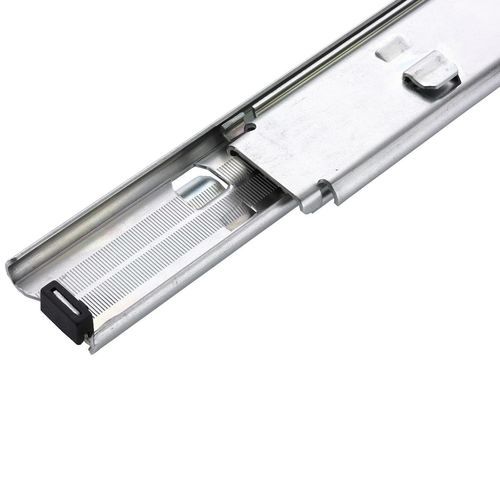

Full-extension slide DZ7400-2 seriesrollerdrawer
Add to favorites
Compare this product
Characteristics
- Extension
- full-extension
- Type
- roller
- Applications
- drawer
- Load
50 kg
(110.2 lb)- Length
Max.: 450 mm
(17.7 in)Min.: 300 mm
(11.8 in)- Working temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Light Duty Slide with Bayonet Mounting DZ7400-2
Light duty slide with bayonet mounting slide DZ7400-2 that has a load rating, with 100% extension, slide thickness of 13mm, hold-in feature.
DESCRIPTION
Light duty slide with bayonet mounting slide DZ7400-2 that has a load rating up to 50kg, with 100% extension, slide thickness of 13mm, hold-in feature.
SPECIFICATIONS
100%+ extension
13mm slide thickness
Hold-in
Bayonet mounting
Please refer to 2D CAD drawings for dimensional tolerances
PRODUCT FEATURES
Light Duty Slide
Drawers wiith bayonet mounting
DZ - Electro zinc plate and blue passivate
Life time guarantee: it's Quick Ship ™ slides against defects in material and workmanship. Please Read more under Help and policy section.
Used for metal cabinets
