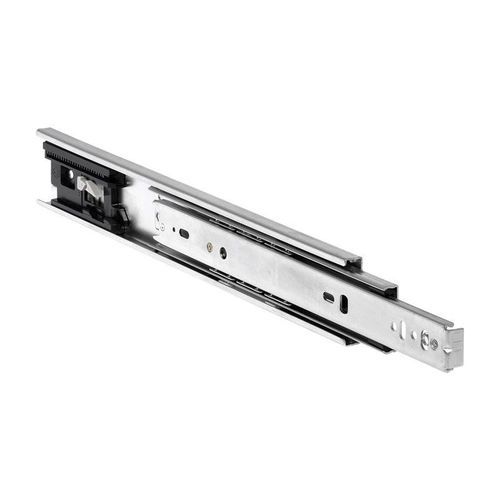

Full-extension slide DZ3832-HDTR series

rollerdrawercam

Light Duty Push-to-Open Drawer Slide DZ3832-HDTR facebook sharing buttonlinkedin sharing buttontwitter sharing buttonsharethis sharing button Light duty push-to-open drawer slide DZ3832-HDTR with touch release that has an activation force of 8kg, load rating , light duty with 100% extension & Hold-in feature. Used for funiture cabinet hardware. DESCRIPTION Ease meets reliability with the 3832HDTR push-to-open drawer slide, specially engineered for demanding environments and applications that may require or additionally benefit from a touch-release option. This touch-operated hardware which requires an activation force of 35N, combined with the hold-in feature, keeps the drawer closed until required even in transit, making it suitable for use in RVs, utility vehicles and even watercraft. Removing the need for knobs or handles on drawers, this slide contributes to a sleek, seamless effect on armoires, kitchen cabinets and offices while also increasing hygiene and safety. The mechanism opens drawers approximately 50mm – 125mm from its closed position and the front-disconnect makes assembly and/or removal as easy as possible. SPECIFICATIONS Touch release - push drawer front to open or close Heavy duty stay-closed feature 100% extension 12.7mm slide thickness Front disconnect Hold-in Cam drawer adjust (3.2mm) Please refer to 2D CAD drawings for dimensional tolerances PRODUCT FEATURES TR -Touch-release feature holds drawers closed until activated by touch Heavy duty touch release stay close - Light Duty Slide
