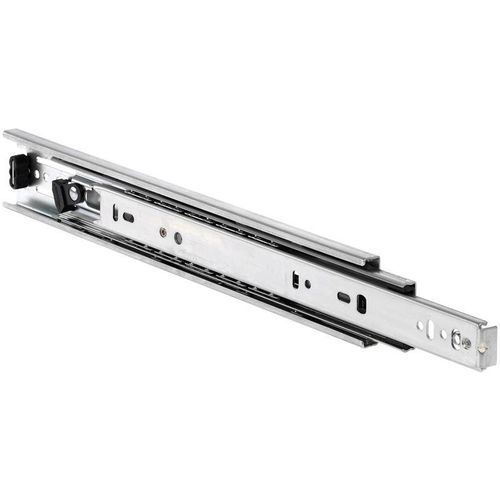

Full-extension slide DZ3832-DO series

rollerdrawerfurniture

Light Duty Slide Front Disconnect DZ3832-DO facebook sharing buttonlinkedin sharing buttontwitter sharing buttonsharethis sharing button Light duty slide front disconnect DZ3832-DO with hold-out in open position that has a load rating upto 45-50kg, 100% extension. With hold-out and 12.7mm-14mm slide thickness. Use for furniture cabinet hardware DESCRIPTION The DZ3832-DO model is a classic light-duty drawer slide that is complete with enhanced strength and movement, full-extension and front disconnection. Suitable for a wide range of uses, including pull-out shelves, kitchen utensil drawers and point-of-sales trays, the DZ3832-DO can support loads of up to 45/50kg, and has a hold-out feature in the open position. As well as the hold-out feature, the DZ3832-DO has a hold-in feature, ensuring the drawer will not leave its closed position until the required force is applied. This, in turn, keeps the drawer’s contents safe from damage by preventing roll-out. The front-disconnect makes the drawer easy to remove and reinstall if required. Our patented Cam Drawer Adjust allows for the precise vertical adjustment of the slide, while a new face frame hole provides easy access to mounting. SPECIFICATIONS Hold-out in open position 100% extension 12.7mm slide thickness (14mm with mounting bracket) Optional clip-on bracket for bottom and platform mounting Front disconnect Hold-in Cam drawer adjust Please refer to 2D CAD drawings for dimensional tolerances PRODUCT FEATURES DO - With hold out Use for furniture cabinet hardware DZ - Electro zinc plate and blue passivate Life time guarantee: it's Quick Ship ™ slides against defects in material and workmanship.
