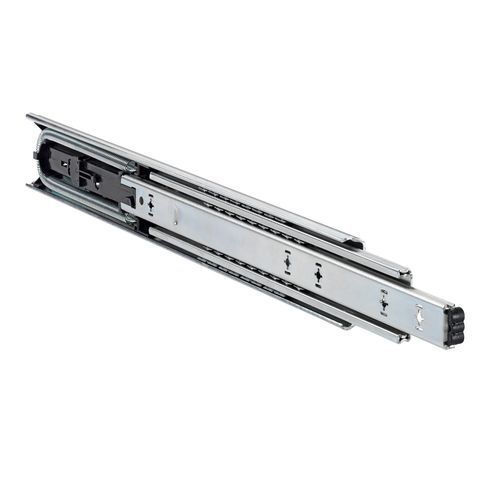

Full-extension slide DZ5417-EC series

rollerdrawer

Soft Close Medium Duty Full Extension Slide DZ5417-EC facebook sharing buttonlinkedin sharing buttontwitter sharing buttonsharethis sharing button Soft close, medium duty full extension slide DZ5417-EC with a load rating with full 100% extension & 17.5mm slide thickness. Soft close is on the last 45mm of closing cycle. Used in industrial & wider drawers DESCRIPTION Soft close, medium duty full extension slide DZ5417-EC with a load rating with full 100% extension & 17.5mm slide thickness. Soft close is on the last 45mm of closing cycle. Used in industrial & wider drawers SPECIFICATIONS 100% extension 17.5mm slide thickness Opening pull force 25N ± 5N Soft-close on the last 45mm of closing cycle PRODUCT FEATURES DZ - Electro zinc plate and blue passivate EC - Easy Close / Soft Close Fixing recommendation: 4mm woodscrew/M4 countersunk screw Vertical side mounted only Light weight and easy to install & suitable for use with slides of 17.5mm thickness and above Used in industrial & wider drawers
