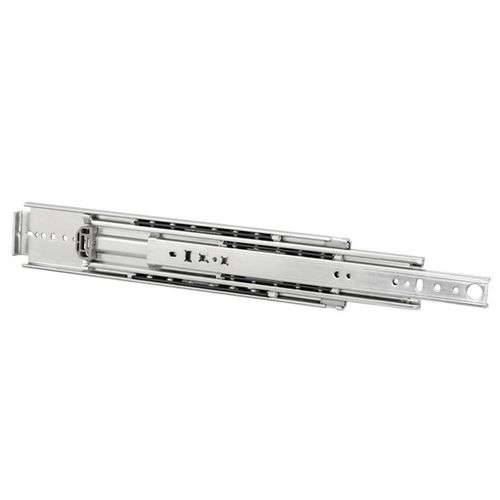

Telescopic slide 9301E

full-extensioncaged balldrawer

Recently enhanced with increased load capacity and shock-absorbing ball bearing space bumpers that reduce impact noise, the 9301E model is the gentle giant of movement solutions--ready to boost heavy pull-out pantries, service vehicles, and even ATMs. Supports loads up to 600 lbs. For drawers up to 42” wide with slide lengths up to 60" 9301E accessory bracket kits offer bottom and side mount installation options For additional technical information see below Tested for a total of 50,000 cycles at maximum load capacity, the 9301E solution extends unfailing strength and reliability for a full breadth of heavy-duty storage needs, setting a high bar in quality and durability for competing slides in its weight class. Full-extension Load Rating: 600 lbs. Side- or flat-mount .75 side-space Non-disconnect Available in even lengths 10"-36", 40", 42", 44" 48", 54", 60" Clear zinc finish Supports 42" wide drawers with slide lengths up to 60" Architectural Spec: Drawers 42 in. [1067 mm] wide or less: Accuride 9301E ball bearing slide, with no disconnect, full extension, and up to 600 lbs./pr. [181.4 kg] load rating. Flat mount: 180 lbs., drawer widths up to 32" Mobile applications: 360 lbs., drawer widths up to 32" Frequent usage: 480 lbs., drawer widths up to 42" Moderate usage: 600 lbs., drawer widths up to 24" Bracket-mounted: 420 lbs., drawer widths up to 42" Bracket-mounted: 600 lbs., drawer widths up to 22" For additional load ratings, consult the technical sheet Bridged ball spacers minimize side-to-side movement, help increased the load rating up 20%, improve full-extension and over-travel reliability, and produce smoother and more consistent movement
