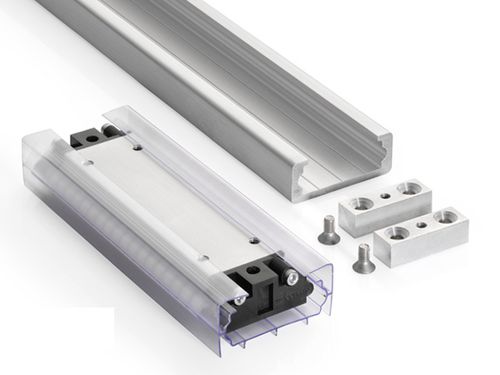

Linear guide with ball bearing 116RC

aluminumtrackcorrosion-resistant

A state-of-the-art sliding solution. With ADA-compliant linear motion and design, the 116RC model is an innovative breakthrough for the sliding door market, also accommodating large screens, panels, movable walls, barn doors, and so much more. Supports loads up to 793 lbs. Aluminum track in a choice of two lengths: 94.5" and 142" Pull-force of less than 5 lbs. (ADA-compliant design) Load Rating: 793 lbs. Aluminum track in a choice of two lengths: 94.5" and 142" Tracks can be cut or butted together to adjust length Recirculating ball carriages come with either stainless steel (for greater load) or polymer (for quiet movement) ball bearings Supports multiple carriages per track Can be fitted for sliding doors (see Door Hardware) RoHS-compliant LOAD RATING DETAILS Track may be side, flat, or vertically mounted Flat-mounted track may be oriented with ball carriage facing up or down Load capacity is based on quantity of employed cassettes/carriages and type of mounting. See technical sheet for additional information. SPECIAL FEATURES Corrosion-resistant Tracks have drilling marks for both the fixing holes and end stops. COMPONENTS: AL0116-0240RC 94.5" Aluminum Track (x1) AL0116-0360RC 142" Aluminum Track (x1) SS0116-CASSRC Carriage – Stainless Steel Bearings (x1) CB0116-CASSRC Carriage – Polymer (x1) AL0116-STOPRC End Stops (2 stops + 2 screws) SS0166-BRKT01RC Recycling Bracket CB0116-DAMP Damper (x1) DOOR HARDWARE: AL0116-SUPPRC Support Beam (x1) AL0116-FASCRC Fascia (x1) AL0116-ECAPRC-2 Fascia End Caps (2 Caps + 8 Screws) PN SS0116-BRKTRC Door Bracket Kit (x1)
