2D laser cutting machine QL-FCT. 6020B

3D laserfiber laserfor metal

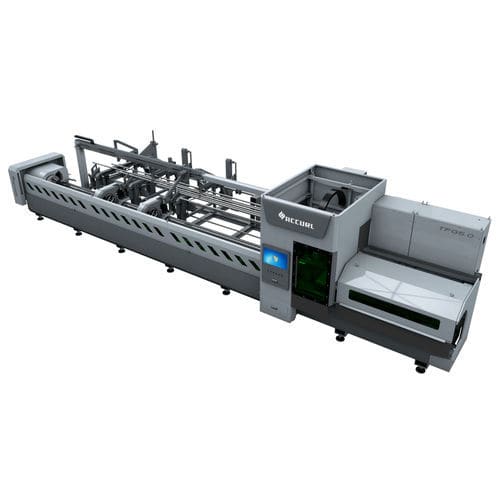

Performance Based On Robustness And, Above All, Reliability. Laser tube cutting machines are our 2D and 3D laser cutting systems for tubes, pipes and profiles, from 12 mm to 610 mm (.5” to 24″) in diameter and up to 18 m (60′) in length. ACCURL® Laser tube cutting is specifically designed for businesses that care about high quality profile & tube cutting.full automatic Loading & Unloading requires less effort and time save for the operator.and Can cut column Crossed Lines at the end of branch pipe,and meet centrifugal and non-centrifugal. ACCURL Tube Laser Cutting Machine - Features & Configuration • Features & Configuration • Flexible • Reliable • Profitabie • User Friendly Includes Following Features And Configuration • FSCUT® CNC 22” SCREEN FSCUT5000 TwinCAT Control System • YASKAWA ® Highly dynamic EtherCAT servo drive • RAYTOOLS ® Cutting head Auto Focus (Switzerland) • ACCURL® Dynamic pipe surface height tracking • ACCURL® Fast piercing 2.0: Ultrafast perforation • Scope of Pipe Processing:￠15 mm-￠200 mm • ACCURL®Automatic calibration • Graphite Anti-burn Technology • Smoke extraction System(TODC-4L/4500m³/h). • IPG 2kw fiber laser resonator YLS-2000K • Floating servo table support system • Automatic Mechanical Loading System ATL-60 • CE Norms:Protective Measures with Real-time monitoring camera • Class IV safety system and CE marking • Full automatic voltage regulator System • FSCCUT ®Embedded PCs: Industrial PCs with directly integrated I/O level • Industrie 4.0 for sheet metal working with TwinCAT Analytics and TwinCAT IoT Flexibility And Efficiency A comparison of the production steps involved in laser tube cutting and conventional manufacturing
