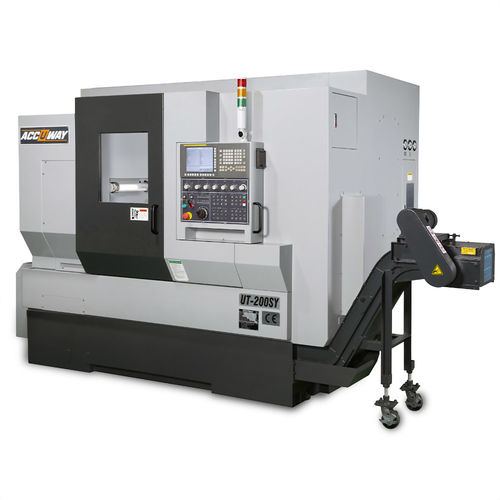

CNC turning center UT-200SY3-axis2-spindleA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Number of spindles
- 2-spindle
- Spindle mount
- A2-6, A2-8, A2-5
- Number of tool stations
- 12 tools
- Diameter
680 mm
(26.77 in)- Spindle speed
3,500 rpm, 4,000 rpm, 4,500 rpm, 6,000 rpm
(21,991.149 rad.min-1, 25,132.741 rad.min-1, 28,274.334 rad.min-1, 37,699.112 rad.min-1)- Maximum cutting diameter
200 mm, 240 mm
(8 in, 9 in)- Maximum cutting length
360 mm, 440 mm
(14 in, 17 in)- Bar capacity
44 mm, 52 mm, 65 mm, 75 mm
(2 in, 2 in, 3 in, 3 in)- Axe X
220 mm
(9 in)- Axe Z
600 mm
(24 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
20,000 mm/min
(13 in/s)- Nominal power
5.5 kW, 7.5 kW, 11 kW, 15 kW, 18.5 kW
(7.5 hp, 10.2 hp, 15 hp, 20.4 hp, 25.2 hp)- Overall lenght
3,200 mm
(126 in)- Overall width
1,800 mm
(71 in)- Overall height
2,200 mm
(87 in)- Weight
4,500 kg
(9,921 lb)
Description
Swing over saddle - mm - 485
SPINDLE 1
Chuck diameter - inch - 6 - 8 - 10
