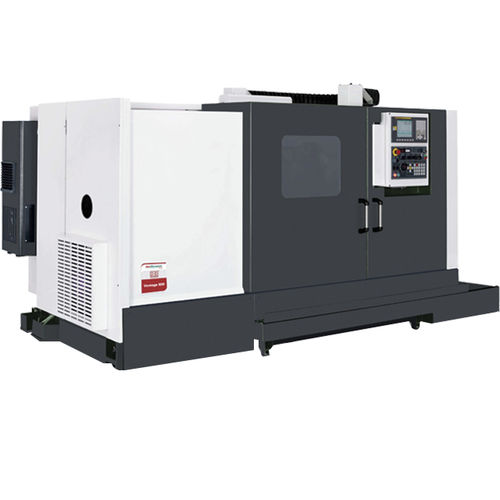

CNC turning machine VANTAGE-500-LM

2-axisdrillinghigh-precision

The Vantage Ace Vantage turning centers combine power, rigidity and productivity. These are high precision CNC Turning centers with C and Y axes capability to cater to a wide variety of machining needs like milling, drilling, tapping and front/back-end turning applications in a single setup which increases the machine capability significantly. All the stations are capable of driving a Milling, Drilling or Tapping head attachments. C-Axis C-axis provides bi-directional motion that can be interpolated with X/Z motion. The rotating cutters are mounted on the tool turret and they move in the same two axes of motion as the turning tools. Y-Axis Y-axis is a third linear axis which enables rotary cutters to machine across the spindle center line. To get Y-axis motion, an extra set of ways is used to move the live tool across the face of the spindle. Standard Accessories •Cartridge type spindle •AC spindle & axes drives •Linear Motion Guideways •8 station bi-directional turret •Tailstock with live center •Automatic centralized oil lubrication •Drain line oil cooler •Basic hydraulic system •Built-in lighting system •Over load trip clutch for axes •AC unit for electrical cabinets •Door Interlock Optional Accessories •Fully tooled up solutions to meet customer needs •Chip conveyor at side •A wide variety of power operated workholding •Auto door •Tool touch probe •Parts catcher •Bar feeder •Programmable tailstock •Steady Rest •3 Tier lamp •TPM Trak productivity monitoring system •Built live center for tailstock
