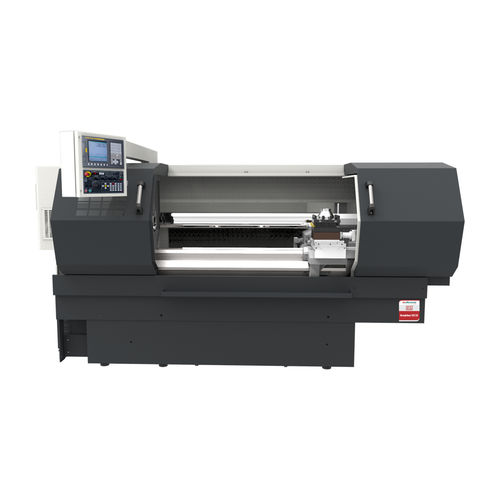

CNC turning machine SIMPLETURN-60125

2-axisflatbedhigh-precision

Machine Component Bed The bed is of robust double walled construction at front & rear, well supported by closely placed adequate number of cross roofings. It provides good rigidity, stability and vibration less dampening. Headstock Direct drive spindle assembly consists of double direction angular contact thrust bearing and taper bore cylindrical bearing. Spindle is of infinitely variable speeds, the bearings are grease lubricated for life. Geared Headstock The hardened and ground gear driven spindle is supported by sel f-compensating super precision oil lubricated taper roller bearings in gearbox. It is designed to give two useful, ranges of continuous and infinitely varying speeds. These features help in getting high torque and heavy cuts throughout the power output. Turret The machine is equipped with rigid 4 station vertical axis turret as standard. The turret fitted with the three piece hirth coupling indexes electrically with higher precision and repeatability. BTP 80-6 station turret is offered as standard in 6T models. Bi-directional tool turret indexes in either direction for shortest indexing time. Standard Accessories •Direct drive spindle •4 station vertical axis turret •BTP 80 - 6Station turret - 6T models •Coolant equipment •Machine lamp •MT-5 dead centre •Electronic hand wheels at apron •Automatic slideway lubrication •Manual tailstock •Operator tools Optional Accessories •Spindle with gear box •Main spindle reduction sleeve, Drive plate and MT-4 dead center •Revolving center for tailstock •Steady Rest :Roller type •Follow Rest: Roller type •Follow Rest: Bush type •Manual chuck •Hydraulic chuck and cylinder •Hydraulic quill
