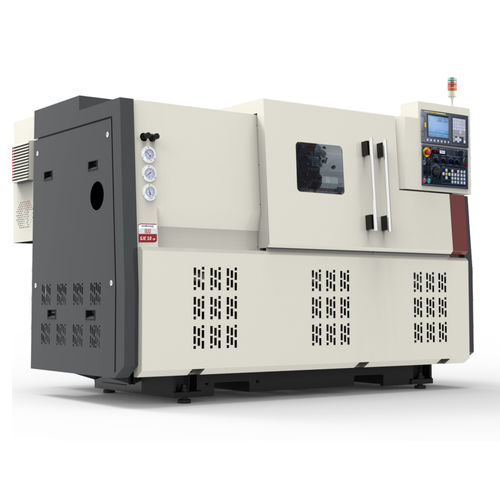

CNC lathe SJE 10 series

horizontal2-axishigh-speed

Machine Features •Powerful AC Spindle motor •Step Up Z-axis Structure •High speed 3500 rpm spindle •Thermally stabilised spindle •Pre-tensioned ball screw support •Heavy duty bi-directional hydraulic turret (8 station) •0.45 sec. station-to-station Turret Indexing time •100% ball bar tested •LASER calibrated axes •Separate coolant tank for easy maintenance •MachineConnect™ software Standard Accessories •AC spindle motor & axes drives •Precision guideways on both axes •Tailstock with live center •Automatic centralized oil lubrication •Hydraulic power operated chuck (0200 mm) •AC unit for electricals •Programmable quill •3 tier lamp •Rigid tapping •Drain line oil cooler •Basic hydraulic system •OD tool holder clamping block (8 nos) •Boring bar holder (4 nos) •Facing tool holder (2 nos) •Set of sleeves Optional Accessories •Hydraulic power operated Chuck (0250 mm) •Voltage stabilizer - 25 kVA •Chip conveyor rear/side mount •TPM - Trak productivity monitoring system •Tailstock with built-in revolving center •Auto door •12 station turret •High pressure coolant system
