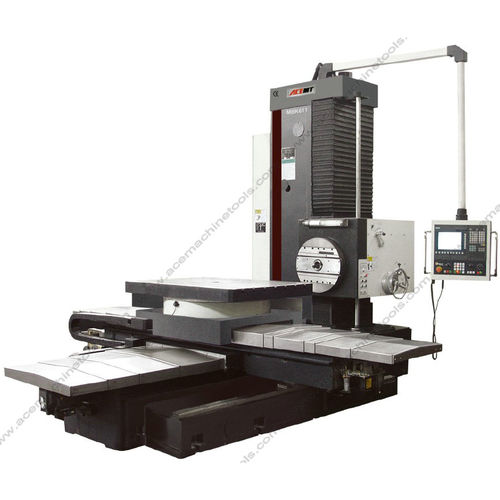

CNC boring machine MBK611

horizontal

CNC Horizontal Boring Machine Feature: The bed-way% column, the upper saddle and the slide block are ail equipped with rectangular guide way The three axis are associated by imported bail screw to make an linear and circular interpolation Both the boring axis and gear plate feed by Panasonic servo motor, and stepless speed feed by handle switch The spindle with high and low shift structure spindle, max. Torque 1100N.m and max. Speed 1100rpm The guide way and bail screw adopt the concentrated lubrication System and supply oil for the parts in circle The headstock equipped with constant température tank forces circulation and cooling and lubrication Equipped with CNC tooth coupling.and minimum 5°, butterfly spring clamp, hydraulic loosening structure Tool handle with BT50 structure, butterfly tool clamping and hydraulic loosening.
