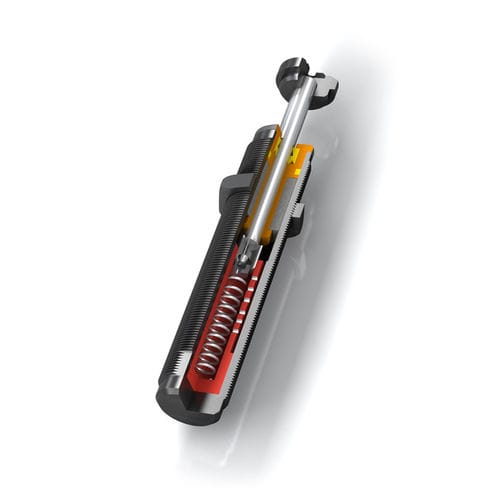

Shock absorber SC190EUM-0

hydraulicindustrialstainless steel

Long stroke and soft impact Self-Compensating, Soft-Contact Ideal for soft damping: The SC found in the model code from the ACE product family SC190 to SC925 stands for 'soft contact'. These miniature shock absorbers manufactured from one solid piece are designed in such a way that they can be setup with a linear or a progressive braking curve. The soft damping character is thanks to the special, long strokes producing smooth deceleration and low reaction forces. These maintenance-free, ready-to-install hydraulic machine elements are equipped with an integrated positive stop. The use of side load adapter allows impact angles of up to 25°. Thanks to the designed overlapping effective weight ranges, these dampers cover an effective load range of below 1 kg to more than 2,000 kg! The miniature shock absorbers from the SC190 to SC925 product family are used in mechanical engineering and primarily in the areas of handling and automation. Technical data Impact velocity range 0.15 m/s to 3.66 m/s. Other speeds on request. Operating temperature range 0 °C to 66 °C Mounting in any position Positive stop Integrated Material Outer body, Accessories: steel corrosion-resistant coating; Piston rod: hardened stainless steel Damping medium oil, temperature stable
