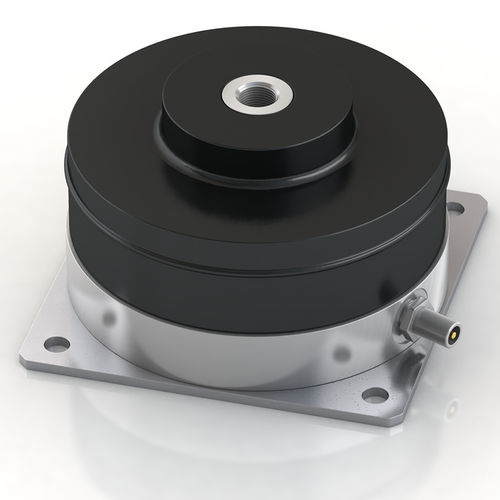

Cylindrical anti-vibration mount PLM

zinc-plated steelrubberleveling

Easy to use, wide selection Pneumatic Air Spring Elements Natural frequency 3 Hz to 10 Hz Extremely low natural frequency of only 3 Hz: With the air spring elements of the product family PLM, ACE can now offer low frequency vibrations and impact isolation to many sectors. There are eight different, readily available off-the-shelf designs, which can withstand small to large loads from 45 kg up to 8,800 kg. They enable all types of equipment to be isolated from undesirable vibrations and at the same time can be used for perfect levelling via the integrated valve. When used as a vibration absorber, the internal air chamber provides a significant isolating effect, starting at 5 Hz and up. The ratio of horizontal to vertical natural frequency is 1:1 and only 3.0 Hz in optimally loaded conditions. Users of measurement tables, test stations, high-speed presses, production plans and other constructions have expressed great satisfaction with this system. Natural frequency 3 Hz to 10 Hz Standard colour black Operating temperature range -30 °C to +50 °C Material Outer body: aluminium PLM 1, 3, 6, 12; zinc plated steel PLM 24, 48, 96, 192; Isolation medium: neoprene Low Freq. Pneumatic Levelling Mounts - PLM Vibration isolation for high performance projectors In an opera production a 3D HDD projector was supposed to project images onto the stage during performances. Standing as it did on a trolley, which was to be moved over a tiled floor, the projector was virtually unusable. The problem was solved by...
