Small diameter, large damping torques
Partial Rotation Angle

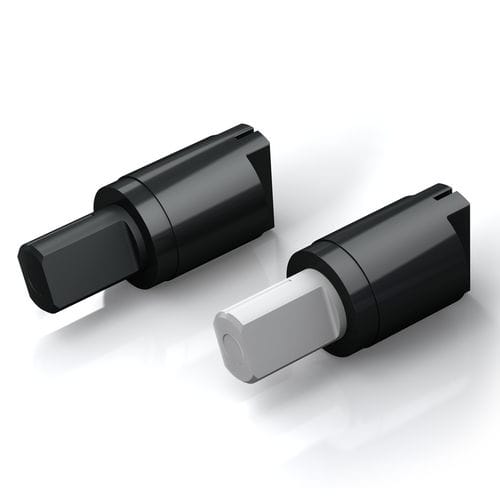

The damping direction of the rotary damper FYN-P1 can be either right or left rotation. The dampers can be directly mounted in the pivot point. During each reverse movement of the unilateral decelerating versions there is a certain return damping torque that depends on the size. Differentiation of the damping direction through the coloured shaft. ACE rotary dampers are maintenance-free and ready-to-install.
Damping direction right
Construction size Ø 18.5 mm
Lifetime 50,000 cycles, even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application.
Operating temperature range -5 °C to +50 °C
Material Outer body, Shaft: plastic
Mounting in any position
Rotation angle max. 115°
