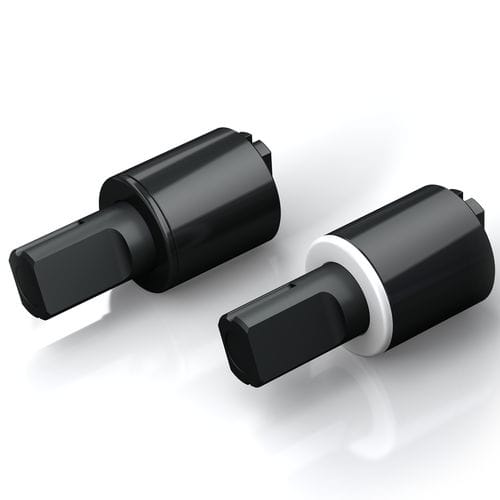

Rotary damper FYN-N1-R

mechanicalplastic

Small diameter, large damping torques Partial Rotation Angle The damping direction of the rotary damper FYN-N1 can be either right or left rotation. The dampers can be directly mounted in the pivot point. During each reverse movement of the unilateral decelerating versions there is a certain return damping torque that depends on the size. Differentiation of the damping direction through coloured end cap. ACE rotary dampers are maintenance-free and ready-to-install. Damping direction right Construction size Ø 20 mm Lifetime 50,000 cycles, even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application. Operating temperature range -5 °C to +50 °C Material Outer body, Shaft: plastic Mounting in any position Rotation angle max. 110°
