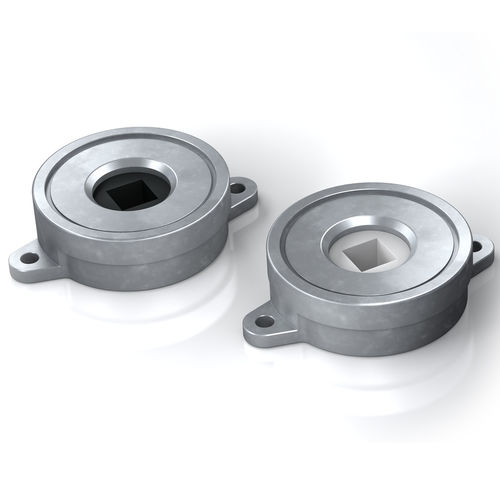

Rotary damper FYN-S1-R
mechanicalplasticself-compensating

rotary damper
rotary damper
Add to favorites
Compare this product


Characteristics

Function
rotary
Technology
mechanical
Material
plastic
Other characteristics
self-compensating
Load capacity

Max.: 10 N

Min.: 5 N

Description

The flat damper for constant component protection Partial Rotation Angle The self-compensating FYN-S1 rotary damper with zinc die-cast body provides a constant sequence of movement for different masses. The damping direction can be either right or left rotation. During each reverse movement of the unilateral decelerating versions there is a certain return damping torque that depends on the size. ACE rotary dampers are maintenance-free and ready-to-install. Damping direction right Construction size Ø 60 mm Lifetime 50,000 cycles, even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application. Operating temperature range -5 °C to +50 °C Material Outer body: zinc die-cast; Output shaft sleeve: plastic Mounting in any position Rotation angle max. 130°
