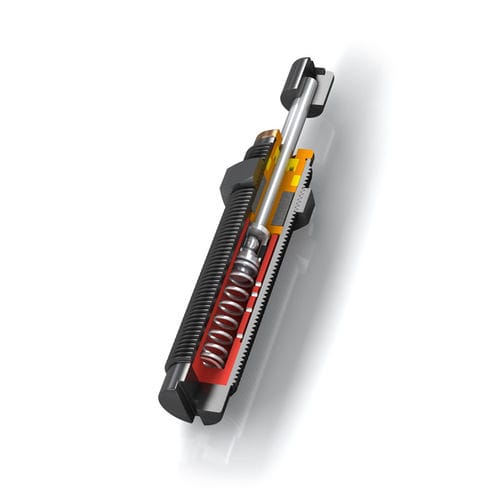

Shock absorber MC75EUM

hydraulicfor machinesself-compensating

Shock absorbers in miniature format Self-Compensating Ideal for compact, efficient designs: The product family MC5 to MC75 impresses users with their reduced dimensions and their very short overall lengths and low resetting forces after braking. The outer body of each damper, produced from one solid piece, are filled with temperature stable oil, offer a continuous thread incl. a supplied lock nut and also have an integrated positive stop. These hydraulic machine elements from ACE, are ready for immediate installation and are maintenance-free. A comprehensive range of energy absorption with a wide range of effective weight potential are further benefits in these minature units. These miniature shock absorbers are perfectly suited to use in applications such as mechanical engineering, medical and electro-technology and robotics. Technical data Impact velocity range 0.15 m/s to 4 m/s Operating temperature range -10 °C to +66 °C Mounting in any position Positive stop Integrated Material Outer body, Accessories: steel corrosion-resistant coating; Piston rod: hardened stainless steel; Rod end button: steel, MC25 and MC75: elastomer insert; Locknut: steel, MC5 and MC9: aluminium Damping medium oil, temperature stable
