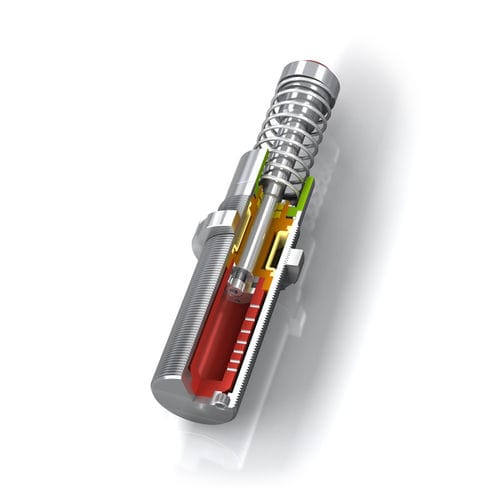

Shock absorber MC64EUM-V4A

mechanicalindustrialfor the food industry

Optimum corrosion protection Self-Compensating, Stainless Steel The latest damper technology in stainless steel: The self-compensating industrial shock absorbers MC33 to MC64 from the tried-and-tested and popular MAGNUM range is also available with all outer components made from stainless steel, material 1.4404 (except piston rod). They are filled in the factory with special oil, which meets the permit conditions (NSF-H1) for the food industry. Just like the standard product family, the MAGNUM stainless steel models are distinguished by their robust, modern sealing technology, high energy absorption in a compact design, integrated positive stop and a wide damping range. Equipped with a PU head, they are available in thread sizes M33x1.5 to M64x2 with damping strokes up to 100 mm. These self-compensating industrial shock absorbers made of stainless steel from ACE are mainly used in the food, medical, electro and offshore industries, but also in many other markets. Technical data Impact velocity range 0.15 m/s to 5 m/s. Other speeds on request. Operating temperature range -12 °C to +66 °C. Other temperatures on request. Mounting in any position Positive stop Integrated Material Outer body, Main bearing, Accessories, Locking ring: stainless steel (1.4404, AISI 316L); Piston rod: hard chrome plated steel; Rod end button: stainless steel (1.4404, AISI 316L) with elastomer insert; Return spring: stainless steel Damping medium special oil NSF-H1 approved
