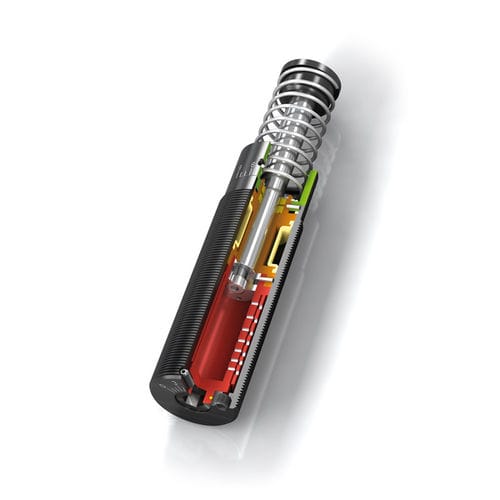

Shock absorber MA/ML64EUM

mechanicalindustrialadjustable

ndustrial Shock Absorbers High energy absorption and progressive adjustment Adjustable Adjustable and unique: These industrial shock absorbers from ACE, which can be precisely adjusted both at the front and rear, also contribute towards the success of the MAGNUM range. Equipped with excellent sealing technology, an annealed guide bearing and integrated positive stop, they are robust and durable. These dampers absorb 50 % more energy than their predecessors but are built even more compactly. The larger range of effective loads also opens up various options in design and assembly. This makes the ML range especially suitable for effective loads of 300 kg to 500,000 kg. Where work is done with changing application data and wherever flexibility is required, they make the best option. These adjustable industrial shock absorbers are used in all areas of mechanical engineering - e.g. in automation, integrated in linear carriages or pivoting units and also for gantries. Technical data Impact velocity range MA: 0.15 m/s to 5 m/s. ML: 0.02 m/s to 0.46 m/s. Other speeds on request. Operating temperature range -12 °C to +66 °C. Other temperatures on request. Mounting in any position Positive stop Integrated Adjustment Hard impact at the start of stroke, adjust the ring towards 9. Hard impact at the end of stroke, adjust the ring towards 0. Material Outer body: nitride hardened steel; Piston rod: hard chrome plated steel; Rod end button: hardened steel and corrosion-resistant coating; Return spring: zinc plated or plastic-coated steel; Accessories: steel with black oxide finish or nitride hardened Damping medium Automatic Transmission Fluid (ATF)
