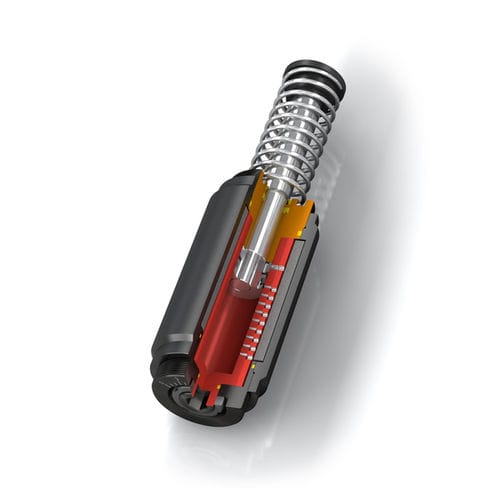

Shock absorber A2X10EU

hydraulicmechanicalmachine

Heavy Industrial Shock Absorbers Deceleration of heavy loads and progressive adjustment Adjustable Strong and adjustable: Also in ACE's range of units ares heavy duty industrial shock absorbers, which can be adjusted. The models from the A1 1/2 to A3 range, which weigh between 7.55 kg and 48 kg, are extremely robust, ready-to-install hydraulic machine elements with impressively high energy absorption levels and a wide range of damping rates. Their special aspect is the flexibility,as all the absorbers can be adjusted using a socket on the absorber base and be perfectly adapted to the required data. The A models cover a range of effective loads from 0.3 kg to 204,000 kg and can absorb up to 44,000 Nm energy. These heavy duty, adjustable ACE industrial shock absorbers are the first choice in heavy duty applications and generally in heavy mechanical engineering when the usage data has not been exactly determined. Technical data Impact velocity range 0.1 m/s to 5 m/s. Other speeds on request. Operating temperature range -12 °C to +66 °C. Other temperatures on request. Mounting in any position Positive stop External positive stops 2.5 mm to 3 mm before the end of stroke provided by the customer. Adjustment Hard impact at the start of stroke, adjust the ring towards 9. Hard impact at the end of stroke, adjust the ring towards 0. Material Outer body: steel corrosion-resistant coating; Piston rod: hard chrome plated steel; Rod end button: hardened steel and corrosion-resistant coating; Return spring: zinc plated steel Damping medium Automatic Transmission Fluid (ATF)
