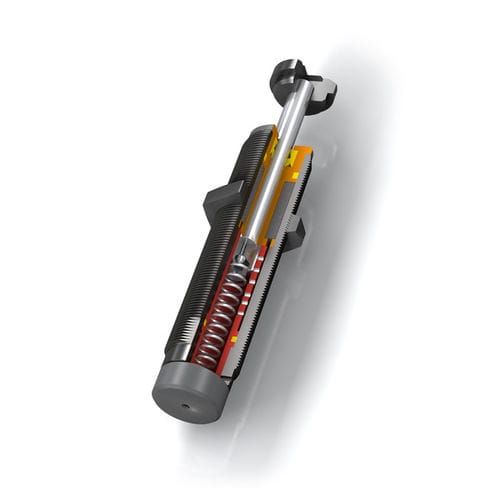

Vibration damper MVC900EUM

hydraulicindustrialsteel

Hydraulic Feed Controls MVC900EUM Designed for applications with low precision requirements Adjustable Many application options: The hydraulic feed controls in models FA, MA and MVC are similar to that of the VC model. However, these hydraulic controls have been designed for applications that require less precision. There are also plenty of accessories for the FA, MA and MVC models. All products are ready-to-install, maintenance-free, stable in temperature and avoids stick-slip effect. Speeds from 12 mm/min. can be driven at a low thrust force using the adjustment screw on the base of the hydraulic control. Hydraulic feed controls with the designations FA, MA and MVC are especially used in handling modules or linear carriages and also for applications with changing usage data. Impact velocity range At speeds of 0.3 m/s the maximum allowed energy is approx. 2 Nm. Where higher energies occur use a shock absorber for the initial impact. Avoid high impact velocities. Adjustment Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS. Positive stop Integrated Damping medium oil, temperature stable Material Outer body: nitride hardened steel; Piston rod: steel with black oxide finish or nitride hardened Mounting in any position Operating temperature range 0 °C to 66 °C
