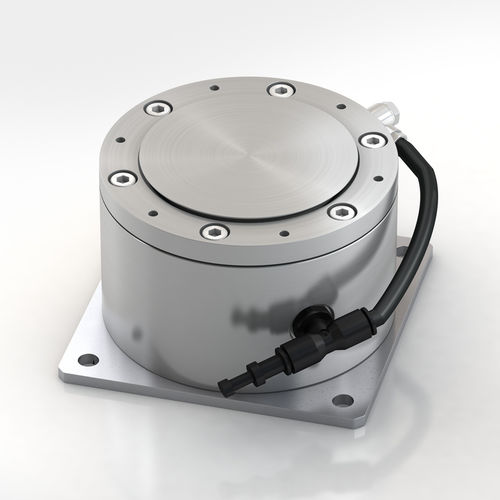

Cylindrical anti-vibration mount PAL-9

metalair spring

Small size, high end performance Air Spring Elements with Automatic Level Control Natural frequency 1.2 Hz to 5 Hz Load range max. 385 kg For superior low frequency vibration isolation: PAL-3 至 PAL-9 high-quality air springs are designed for conditions in which the user wants to ensure that equipment is constantly level and isolated from vibrations at the same time. The PAL system is an air spring system with level control that reacts quickly to loads and centre-of-gravity changes and adjusts deviations from the pre-set position automatically. The system is available in three different sizes for loads up to 385 kg per air spring with a natural frequency up to 1.7 Hz. Customised isolators with a natural frequency of up to 0.5 Hz can be manufactured upon request. The springs ensure perfect results in sensitive areas such as on measuring equipment, aircraft or automotive test stations, as well as in other areas, such as foundation mountings. Natural frequency 1.2 Hz to 5 Hz Load range max. 385 kg Stroke max. 4 mm to 6 mm Operating temperature range -30 °C to +50 °C Material Isolation medium: neoprene
