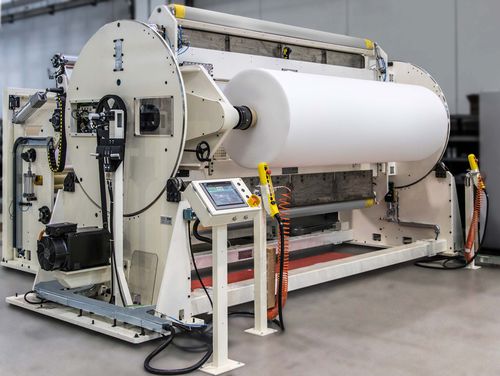

Paper unwinder Non Stop

filmmanualautomatic

Automatic non-stop or stop & go axial unwinder designed to process film, nonwovens, paper and tissue Basis weight range: 10-150 gsm* Max. web width: 3600 mm** Max. ø of master roll: 1500 mm** Max. operating speed: 400 or 800 m/min** Core ø: 3''; 6''; 6 3/4'' *different basis weights can be confirmed after samples evaluation **max operating speed and finished reel diameter is strictly related to the product properties, widths and cardboard cores ø. Single or double unwinding direction Automatic/manual roll change Automatic tension control Full speed flying splice (non-stop version) Shafted & shaftless configurations Turret or cantilevered design Roll handling system Shaft handling system Overhead platform for installation between cards Special tension control system and adjustable gap for delivering the web on the production line Best for multilayered webs (card-spun-card, card-paper, wetlaid line, lamination line, etc)
