Pelletizing screw extruder ASE series

compoundingrecyclingfor PP

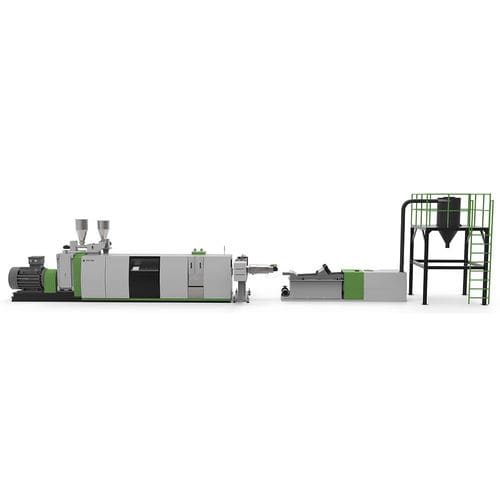

ASE Single screw Pelletizing extrusion recycling lines machine The ASE series single screw extrusion and pelletizing system is a specialized and reliable system, suitable to the recycling and re-pelletizing job of rigid plastic scrap. It combines function of plasticization and pelletizing to one step and is ideal for crushed regrinds or flakes of PE/PP/ABS/PS/HIPS/PC etc. Final productions produced by ASE single screw extrusion line are in the form of pellets/ granules, can directly put into the production line for film blowing, pipe extrusion cand plastics injection,etc. SPECIFICATIONS Machine Model:ASE Target Recycled Material:HDPE，LDPE，PP，BOPP，CPP，OPP，PA，PC，PS，PU，ABS Final Product Shape: Particles Final Product Shape:Particles System composition:Screw Loader, Single Screw Extruder, Filtration first, Vacuum Degassing, Pelletizer, Water Cooling Device, Dehydration Section,Conveyor Fan, Product Silo. Output Range:320kg/h-2100kg/h Feeding Device:Belt Conveyor (Standard), Roll Hualing off device (Optional) Diameter of screw:100mm-180mm Material of screw:Bimetal L/D of screw:50/ 1 Heater of barrel:Ceramic heater or Far-infrared heater Cooling of Barrel:Air cooling of fans through blowers Vacuum deashing exhaust:Two Double-zone vacuum degassing system (Standard) Pelletizing type:Water-ring pelletizing/ water-strands pelletizing/ Under-water pelletizing Voltage Standard:According to the Voltage of the Customer's Location Optioanl device:Metal detector, Roll hualing off device, Masterbatch and additives feeder Warranty:13 months from the date of bill of lading Technical services:project design, factory construction, installation and recommendations, commissioning
