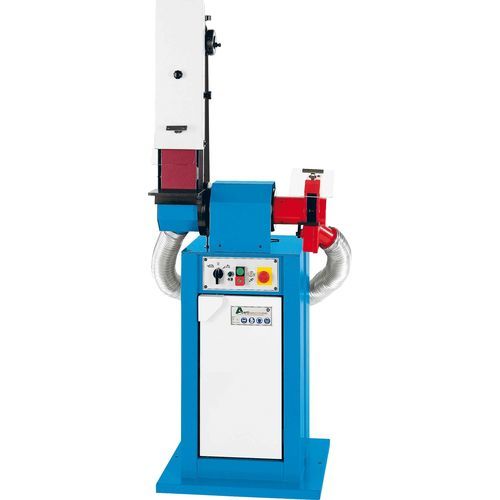

Workpiece grinding machine ART.06

automatic

Power supply 400 | 50 | 3 Volt|Hz|Phase Motor power 1,9 - 1,1 ( 2,5 - 1,5 ) kW ( hp ) Motor speed 2800 - 1400 rpm Acoustic emission 70 dB Overall dimension (Width x Depth x Height) 700 x 600 x H. 1600 mm Weight standard machine 115 kg Belt grinder unit Abrasive belt dimension (wide x length) 120 x 1500 mm Peripheral speed 20 - 10 m/sec Dimension of working plane (behind abrasive belt) 120 x 470 mm Driving wheel dimension ø 135 mm Orientable belt grinding arm 0 ÷ 90 ° Grinder unit Grinding wheel maximum external size ø 200 mm Motor shaft diameter ø 20 mm Grinding wheel maximum wide size 25 mm Peripheral speed 30 - 15 m/sec Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside. Electrical panel Low voltage electric controls with padlock device integrated in the main electric switch. Electronic brake card Emergency stop with electronic motor braking with safety anti-reset function. Motor Motor 2 speeds Orientable arm sander Arm sander adjustable from 0 ° to 90 ° and intermediate positions. Type of work Three types of processing, in plan with support, on tyred wheel, on tyred wheel with support. Work surface Behind the abrasive tape has a durable floor in abutment replaceable steel over time.
