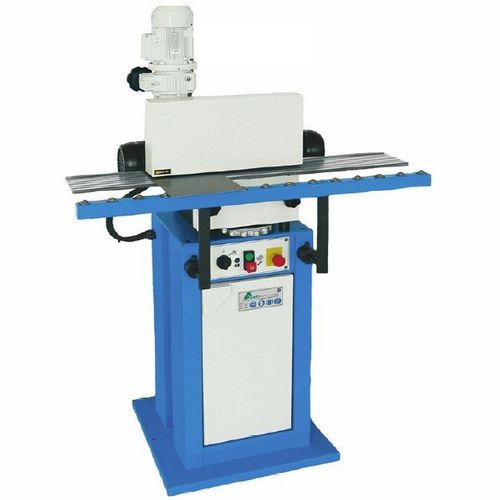

Sheet metal deburring machine ART.37

deburringstationarydouble-sided

Power supply 400 | 50 | 3 Volt|Hz|Phase Motor power (2x) 0,75 ( 1,0 ) kW ( hp ) Motor speed 1400 rpm Acoustic emission 70 dB Overall dimension (Width x Depth x Height) 1000 x 700 x H. 1200 mm Weight standard machine 140 kg Deburring unit Workpiece thickness allowed 1 ÷ 4 mm Support table dimension 120 x 1000 mm Workpiece width allowed 50 mm Brush maximum external size ø 250 mm Brush maximum wide size 50 mm Brush minimum hole size 100 mm Peripheral speed of brush 18 m/sec Quantity of brush 2 No. Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside. Electrical panel Low voltage electric controls with padlock device integrated in the main electric switch. Electronic brake card Emergency stop with electronic motor braking with safety anti-reset function. Guides Guides hardened, cemented, grinded and grooved for a prolonged resistance to attrition. Support Support removable floor plate. Handwheel Sheet thickness adjustment handwheel. Working Deburring of the sheet above and below in a single pass.Axial displacement of the flap brushes for the full utilization of the abrasive surface. Lamellar abrasive wheel Two lamellar abrasive wheels mounted on the machine ready for use.
