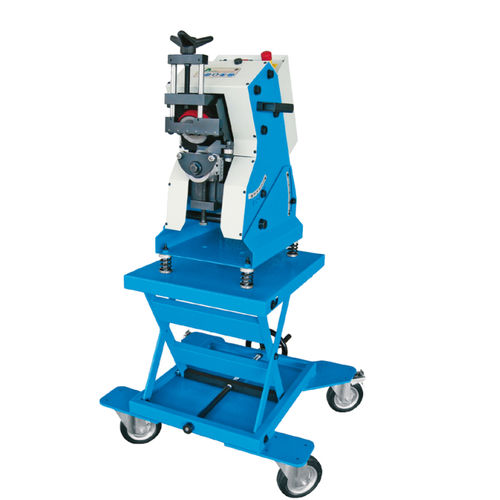

Plate beveling machine ART.93

electricmobileautomatic

Power supply 400 | 50 | 3 Volt|Hz|Phase Acoustic emission 70 dB Overall dimension (Width x Depth x Height) 350 x 615x H. 690 mm Weight standard machine 150 kg Chamfer - bevel unit Feeding speed of workpiece 3 m/min Gearmotor power 580 N*m Bevel dimension (diagonal) 0 ÷ 18 mm Workpiece thickness allowed 5 ÷ 60 mm Workpiece diameter allowed 110 mm Milling cutter diameter 93 mm Workpiece length allowed 200 mm Standard Equipments Electrical panel Electrical panel low voltage with padlockable main switch and emergency stop button with electronic motor braking for a quick stop of the machine. Reverse Electronic reversing of the direction of travel for partial sheet metal chamfering. Gear motor It mounts on a sturdy structure a powerful and resistant gearmotor designed to absorb and minimize the strong stresses subjected during the life of the machine. Variable angle 22.5 ° - 30 ° - 37.5 ° - 45 ° - 55.5 ° at any time without the need for any accessories.Graduated vernier for head adjustment, horizontal rearrangement of the machine and sheet thickness. Miller The miller is specially designed with a toothed edge, such that it is suitable for automatic advancement. The miller included with the machine is suitable for chamfering iron materials and with a tensile strength of 45 kg / mm2 Chamfer tubes With a simple passage with the supplied accessory, the machine is capable of chamfering round pipes, having a minimum diameter of 100 mm; making grooves at the top of the tube.
