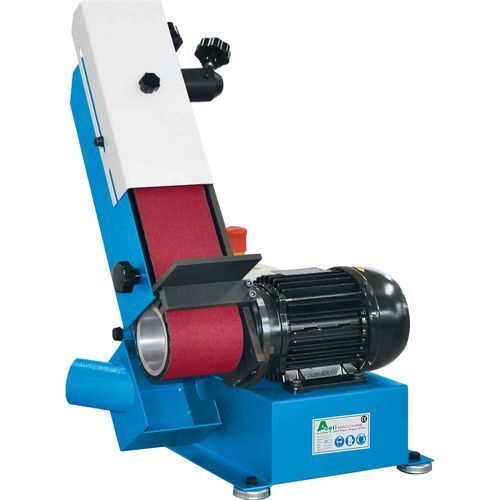

Surface grinding machine ART.22

for pipe endsautomatic

Power supply 400 | 50 | 3 Volt|Hz|Phase Acoustic emission 70 dB Overall dimension (Width x Depth x Height) 450 x 550 x H. 600 mm Weight standard machine 28 kg Belt grinder unit Abrasive belt dimension (wide x length) 100 x 1000 mm Peripheral speed 15 m/sec Dimension of working plane (behind abrasive belt) 100 x 290 mm Driving wheel dimension ø 100 mm Orientable belt grinding arm 0 ÷ 90 ° Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Stable bench structure with anti-vibration rubbers at the base. Electrical panel Electric controls with emergency stop and anti-reset function for accidental starting and electronic overload protection. Orientable arm sander Arm sander adjustable from 0 ° to 90 ° and intermediate positions. Type of work Three types of processing, in plan with support, on tyred wheel, on tyred wheel with support. Work surface Behind the abrasive tape has a durable floor in abutment replaceable steel over time. Rubberized grooved wheel Rubberized, grooved and balanced drive wheel for better drag of the abrasive belt. Abrasive belt Abrasive belt mounted on the machine ready for use. Belt grinder cover Carter sander with predisposition connection system.
