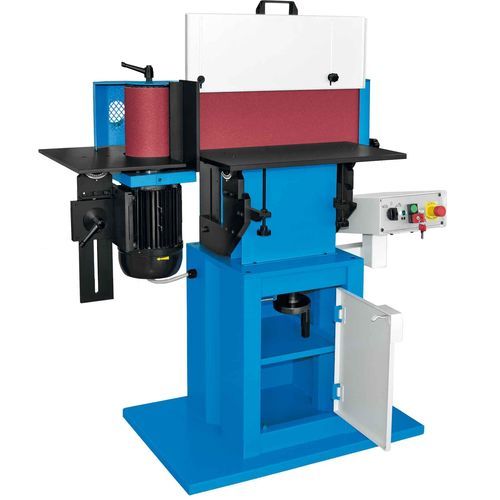

Surface grinding machine ART.73N

workpieceautomatic

Power supply 400 | 50 | 3 Volt|Hz|Phase Acoustic emission 70 dB Overall dimension (Width x Depth x Height) 1050 x 550 x H. 1200 mm Weight standard machine 225 kg Belt grinder unit Abrasive belt dimension (wide x length) 200 x 1750 mm Peripheral speed 20 - 10 m/sec Dimension of working plane (behind abrasive belt) 565 x 300 mm Driving wheel dimension ø 135 mm Orientable belt grinding arm 0 ° Support table dimension 565 x 300 mm Support table revolution - 45 ÷ + 45 ° Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside. Electrical panel Low voltage electric controls with padlock device integrated in the main electric switch. Electronic brake card Emergency stop with electronic motor braking with safety anti-reset function. Motor Motor 2 speeds Type of work Two types of work:- Plan for special support of the surface plate processing:tiltable with graduated indicator -45 ° to + 45 ° and intermediate positions height adjustable by means of handwheel for the full utilization of the cutting surface of the abrasive tape.
