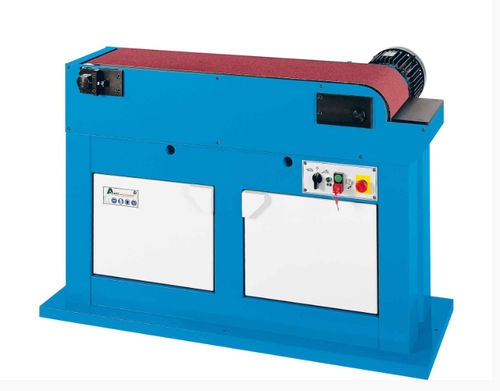

Workpiece grinding machine ART.64

automatic

Power supply 400 | 50 | 3 Volt|Hz|Phase Acoustic emission 70 dB Overall dimension (Width x Depth x Height) 1390 x 720 x H. 1020 mm Weight standard machine 290 kg Belt grinder unit Abrasive belt dimension (wide x length) 300 x 2500 mm Peripheral speed 30 - 15 m/sec Dimension of working plane (behind abrasive belt) 300 x 900 mm Driving wheel dimension ø 200 mm Orientable belt grinding arm 0 ° Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside. Electrical panel Low voltage electric controls with padlock device integrated in the main electric switch. Electronic brake card Emergency stop with electronic motor braking with safety anti-reset function. Motor Motor 2 speeds Arm sander Belt sander in horizontal position. Rubberized grooved wheel Rubberized, grooved and balanced drive wheel for better drag of the abrasive belt. Work surface Behind the abrasive tape has a durable floor in abutment replaceable steel over time. Wheel processing Ability to work in the vicinity of the wheel with a large contact surface. Abrasive belt Abrasive belt mounted on the machine ready for use.
