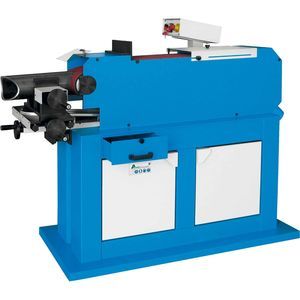

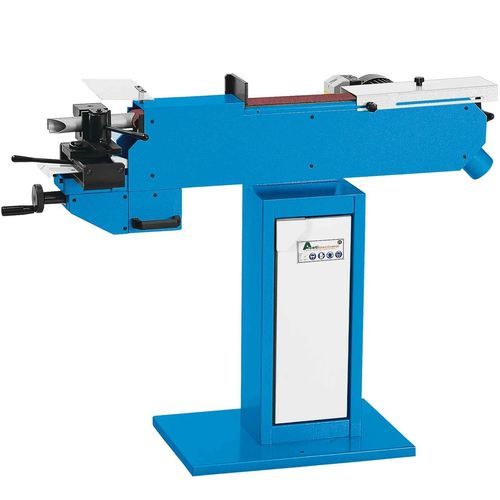

Pipe notching machine ART.60

variable-angletubewith abrasive belt

Power supply 400 | 50 | 3 Volt|Hz|Phase Motor speed 2800 rpm Acoustic emission 70 dB Overall dimension (Width x Depth x Height) 650 X 1500 X 1040 mm Pipe notcher Abrasive belt dimension (wide x length) 75 x 2000 mm Peripheral speed 30 m/sec Dimension of working plane (behind abrasive belt) 75x400 mm Driving wheel dimension ø 200 mm Pipe diameter ø 20 ÷ ø 70 mm Angle of pipe notcher + 90 ÷ +30 ° Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Strong base with anti-vibration rubbers at the base and a useful shelf for tools inside. Electrical panel Low voltage electric controls with padlock device integrated in the main electric switch. Vice Variable angle graduated tube clamping vice with indicator from 30 ° to 90 °.Self-centering vice for round and square tubes.Vice with limit stop device.Side sliding vice for the complete use of the abrasive belt surface. Support plane Orientable support surface for working in support near the front contact wheel. Graphite Present behind the sanding belt the canvas graphite to reduce friction and heat development.
