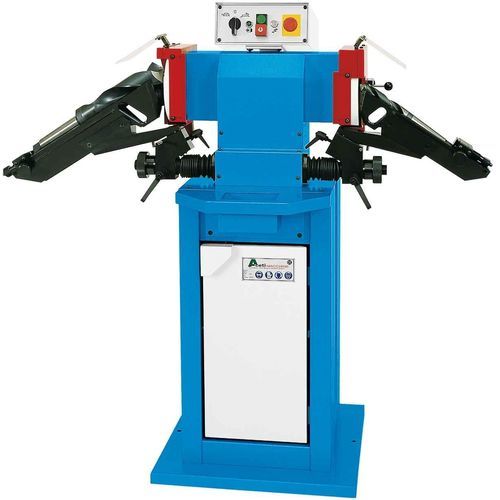

Automatic sharpening machine ART.101

Power supply 400 | 50 | 3 Volt|Hz|Phase Acoustic emission 70 dB Overall dimension (Width x Depth x Height) 1350 x 700 x H. 1300 mm Weight standard machine 130 kg Drill sharpener arm "A" Drill diameter 5 ÷ 35 mm Sharpening angle 118 ° Cup grinding wheel dimension ø 200 x 40 x ø 20 mm Peripheral speed 30 - 15 m/sec Drill sharpener arm "B" Drill diameter 35 ÷ 70 mm Sharpening angle 118 ° Cup grinding wheel dimension ø 200 x 40 x ø 20 mm Peripheral speed 30 - 15 m/sec Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Optional Equipments cod. IA-2: DUST EXTRACTOR - TWO CONNECTIONS DUST EXTRACTOR kit with two suction mouth: complete of dust filter bag in flexible aluminum pipes and hose clamps. The extractor is mounted inside the base and wired to the electrical panel.TECHNICAL FEATURES- Motor: Volt 400 - Rpm 2800 - kW 0,55- Max flow rate: 1.000 m3 / h- Max total pressure: 85 mm H2O
