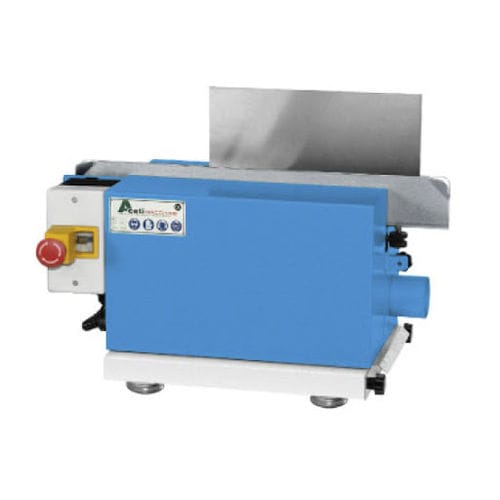

Sheet metal deburring machine ART.53

finishingdouble-sided

Power supply 400 | 50 | 3 Volt|Hz|Phase Motor power 1,1 ( 1,5 ) kW ( hp ) Motor speed 2800 rpm Acoustic emission 70 dB Overall dimension (Width x Depth x Height) 540 x 320 x H. 300 mm Weight standard machine 21 kg Deburring unit Workpiece thickness allowed 0,3 ÷ 2,0 mm Support table dimension 75 x 540 mm Workpiece width allowed 50 mm Abrasive belt dimension (wide x length) (2x) 20 x 500 mm Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Base Stable bench structure with anti-vibration rubbers at the base. Electrical panel Electric controls with emergency stop and anti-reset function for accidental starting and electronic overload protection. Handwheel Handwheel of the tapes pressure regulation. Working Deburring of the sheet above and below in a single pass. Abrasive belt Double abrasive belt mounted on the machine ready for use. Dust collection Dust collection drawer placed under the abrasive belts. Belt grinder cover Carter sander with predisposition connection system.
