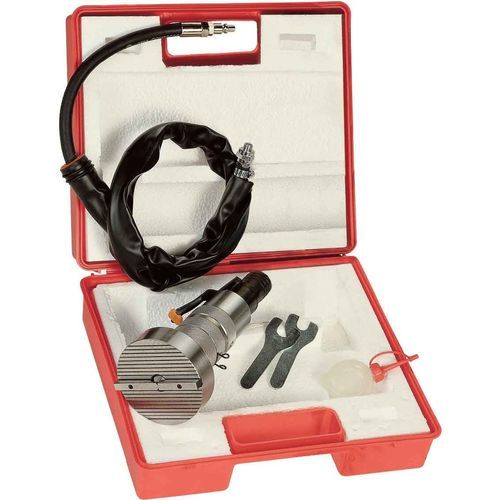

Pneumatic beveling machine ART.40

portablesheet

Max pressure | Air consumption 6 | 320 bar | l/min Acoustic emission 72 dB Overall dimension (Width x Depth x Height) 250 x ø 95 mm Weight standard machine 3 kg Chamfer - bevel unit Bevel dimension (diagonal) 0 ÷ 3 mm ° Milling cutter diameter ø 14 mm Brazed cutter quantity per milling cutter 3 No. Dimension of support plane ø 95 mm Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Technical general information - Hardened, ground and grooved bevel table. - Hardened guides for straight precision bevels, removable for curvilinear bevels. - Micrometric ring for cutting depth adjustment. - Air hose with quick coupling / uncoupling. - Cutter with three cuts type "A" mounted on the machine ready for use.
