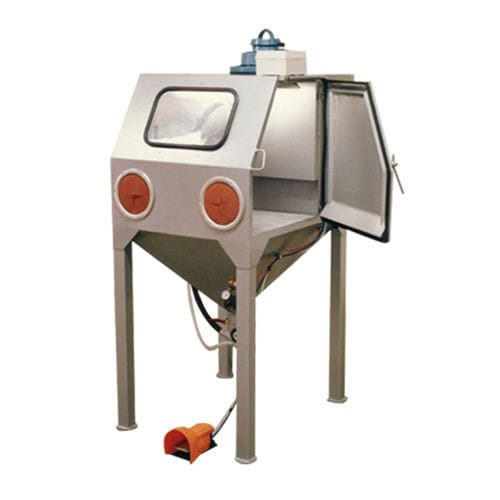

Suction blast cabinet D080

manual

ABRASIVE BLAST CABINET WITH INTEGRATED DUST COLLECTOR Work screen One-piece, max. holds up to 100 kg Gun-holder Adjustable, secured on left wall Sandblasting switch Pneumatic foot pedal Cabinet door Lift-off one-piece swing type door assembled on the right side of cabinet allowing a passage of 500 x 500 Window No blind spot, including: 1 polycarbonate window, thickness 4 mm, fitted in a sealed profile and 1 polycarbonate wear sheet, thickness 1 mm, secured in a tilting frame, very easy to replace Lighting 1 18 W 220 V fluorescent waterproof bowl power supply, unbreakable methacrylate, dust-free ceiling light Electric board Waterproof box on top of cabinet. Equipment: 1 light switch + protection (for suction unit and lighting) against overloading and short-circuits + 30 mA differential protection
