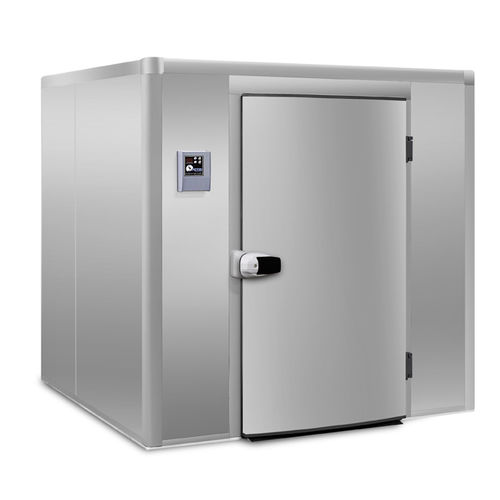

Air blast chiller AR 480 P1000 DC

for the food industryhigh-speedstainless steel

CAPACITY : Trolley(s) are not furnished • 4 racks GN1/1 – 20 levels • 4 racks 600 x 400 – 20 levels • 2 racks 600 x 800 – 20 levels • 3 racks GN2/1 – 20 levels • 2 oven trolleys GN1/1 – 20 levels • Fits with oven trolleys GN2/1 Capic, Frima, Rational, Bourgeois, Convotherm, Angelo Po, MKN et Unox. • Blast Chilling 480 kg from + 65°C to + 10°C core within 80 min. 640 kg from + 65°C to + 10°C core within 110 min. • Deep Freezing 150 kg from + 65°C to – 18°C core within 270 min. 135 kg from + 3°C to – 18°C uncooked meat 4 cm thick core within120 min. SPECIFICATIONS : • Ext. Dimensions W 1916 x D 2050 x H 2270 • Floor depth including edge of step 2135 • Int Dimensions (mm) : Floor depth 1900 • Door useful width and Height W 850 x H 1880 • Insulation thickness : 70 mm • Insulated floor with edge of step thickness 17 mm • Delivered assembled • Hinges on the right (inversion on request) • Int/ext finish : stainless steel • Back panel (see others options)
