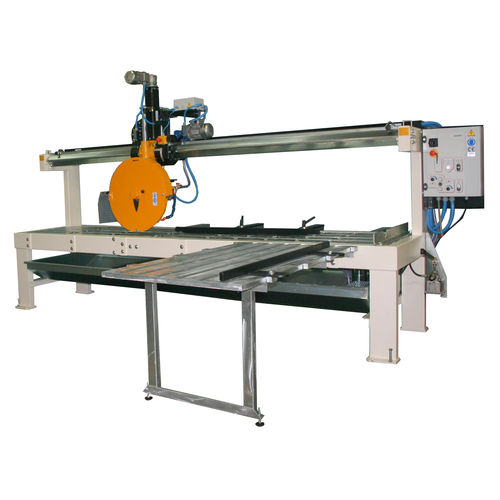

Circular saw TFMcut-offfor stonefor concrete
Add to favorites
Compare this product
Characteristics
- Technology
- circular, cut-off
- Treated material
- for stone, for concrete, for marble, for granite, for ceramics
- Applications
- for tile, for natural stone, wet abrasive
- Operational mode
- automatic
- Other characteristics
- electric, precision, with cooling system, CE, abrasive diamond, for laboratories, variable-speed, high-performance, single-head, with fixed bridge, inverter, with tilting blade, with motorized head, traveling-head, monobloc, sliding, abrasive, PLC-controlled
- Circular saw blade diameter
Min.: 300 mm
(12 in)Max.: 625 mm
(25 in)400 mm, 625 mm
(16 in, 25 in)
Description
Monoblock saw with fixed bridge for thick stone, equipped with a compressed, rectified and chromed “active beam” guaranteeing the utmost accuracy. The worktable extensions widen the worktable facilitating the positioning of large slabs and a special optional device permits to carry out parallel cuts.
Advantages
TFM is an extremely sturdy bridge saw, suitable to cut thick stone slabs:
- Customizable according to customer requirements;
- Equipped with a special design beam providing the utmost accuracy;
- Optional PLC control unit for step-cut programming;
- Motorized head motion with variable speed on X axis in both directions.
Technical details
X axis travel 3100 / 3700 mm (10'2" - 12'1")
Diamond blade diameter 300-400 mm (12"-16")/ 400-625 mm (16"-25")
Blade bore size 50 mm
Motor power 7.5kW = 10HP / 11kW = 15 HP (3ph.)
Main motor rotation speed 1400 rpm 50Hz – 1700 rpm 60Hz
Standard voltage/ frequency 400V-50/60Hz /230V-60Hz 3ph.
