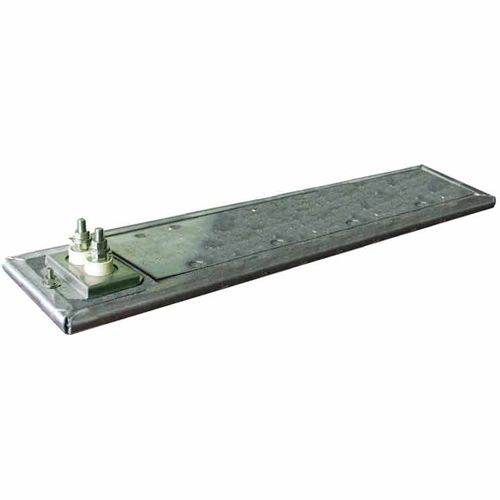

Heating strip

mica

Characteristics - Tailor made heaters, with UL components Certificate number : E251509. - Max. watt density over the surface of the heater: 4W/cm² - Max. operating temperature over the surface of the heater: 350°C, depending on working conditions. - Range of products: : Inside diameter: 120 to 2000mm Outside height: 90 to 424mm Max. wattage: 6000W - Max. voltage: 600V single phase or three phase. - Sheath and clamping in aluminised steel (standard) - Band heaters also available in stainless steel. - Electric insulation with mica - Connection bolts mounted on rectangular base 40x70mm (single phase). Three phase: please get in touch with us. - Connection: - Without cap: terminals, leads - With cap: plug (V < 300V), braid Cap direction: axial, radial or tangential. Band heaters provided with earth wire. - Flat heater thickness (except connection): from 4.5 to 8 mm, depending on the voltage. (NB: the classic Mica band heaters thickness goes from 3.6 to 3.8 mm, depending on the technology). - Tolerance on power: +5% -10% - It is possible to add accessories such as thermocouple bridge or welded lug.
